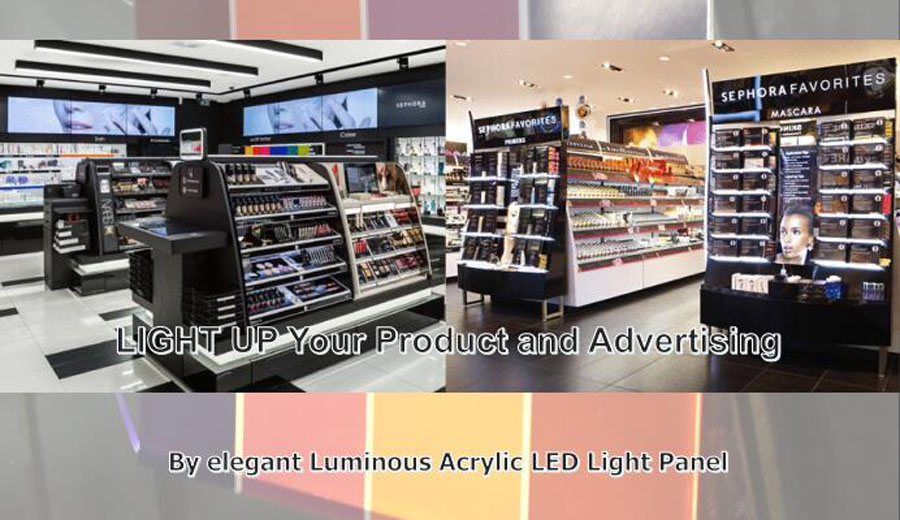

(The shelf luminous panel of make up product's Display stands)



Light up your Product and Advertising By elegant Luminous Acrylic LED Light Panel (LED shevles)
(Indoor LED Light Panel & Outdoor LED Light panel)



(Click for large image)



Colorwoo Company Limited,manufacture of led luminous panels,led slim light boxes and acrylic led lighting signage.Custom design,custom size,uniform surface luminous. Colorwoo company limited establish form 2003,our acrylic led light panel have sell to more than 100 countries and regions,they are apply for the surface luminous lighting project.For example,the shelf luminous panel of make up product's Display stands ;the top and button luminous panel of glass shelf display stand;The light panels of the restaurant's fade windows; the luminous panel of the ceiling of hotel foyer;the luminous projected area of meeting room;the led lighting wall of the public display area; the custom shape luminous signage;the luminous message sign;the luminous advertising sign.



LED light panel fix LED strip by lamp paper

Code:LGP-P

How to fix LED: Lamp Paper
LED PCB:4 - 4.5 mm
Acrylic Panel (Round laser dots): 3 / 4 / 5 / 6/ 8 / 10 mm
Max Width: 900mm
Max Width:1800mm
Wire Outpot: form backside or from edge or from corner
Wire output frorn edge
4 mm Rigid LED Strip
Wire output form corner



LED light panel fix LED strip by L shape alu

Code:LGP-L

How to fix LED: L Shape aluminium
LED PCB:4 - 4.5 mm
Acrylic Panel (Round laser dots): 3 / 4 / 5 / 6 / 8 / 10 mm
Max Width: 1200mm
Max Length:2400mm
Wire Outpot: form backside or from edge or from corner
L alu for good cooling
Flat to LGP, 4 ~ 15 mm
4 mm Rigid LED Strip



LED light panel fix LED strip by U shape alu

Code:LGP-U

How to fix LED: U Shape aluminium
LED PCB:4 - 4.5 mm
Acrylic Panel (Round laser dots): 3 / 4 / 5 / 6 / 8 / 10 mm ( single or double sided)
Max Width: 1200mm
Max Length:2400mm
Wire Outpot: form backside or from edge or from corner
U alu for good cooling
Single sided design
Double sided design
LED light panel fix LED strip by acrylic channel

Code:LGP-Crystal

How to fix LED: Acrylic channel
LED PCB:4 - 4.5 mm
Acrylic Panel (Round laser dots): 8 / 10 mm ( single or double sided)
Max Width: 800mm
Max Length:1600mm
Wire Outpot: form backside or from edge or from corner
Elegant crystal edge
Hide led insided of LGP
4 mm Rigid LED Strip
Magnetic LED light panel fix LED strip by acrylic channel

Code:LGP-Crystal-M

How to fix LED: Acrylic channel
LED PCB:4 - 4.5 mm
Acrylic Panel (Round laser dots): 8 / 10 mm
Max Width: 800mm
Max Length:1600mm
Wire Outpot: form backside or from edge or from corner
Magnetic buttons
Holes for magnet button
Hide led insided of LGP
LED light panel with Custom Shape

Code:LGP-CS

How to fix LED: Referred to your shape
LED PCB:Referred to your shape
Acrylic Panel (Round laser dots): 3 / 4 / 5 / 6 / 8 / 10 mm ( single or double sided)
Max Width: 1200mm
Max Length:2400mm
Wire Outpot: form backside or from edge or from corner
Custom Shape LGP
Combine by two parts
Special shape LGP
